• 2010-2024 RAM 2500 3500 DUAL SWING OUT REAR BUMPER HIGH CLEARANCE *CUT* VERSION

    $3,794.90

    2010-2021 RAM 2500, 3500, POWER WAGON

    DUAL SWING-OUT REAR BUMPER

    (HIGH CLEARANCE *BED CUT* VERSION)


    Made 100% in the USA


    SOME LOWER BED CUTTING REQUIRED

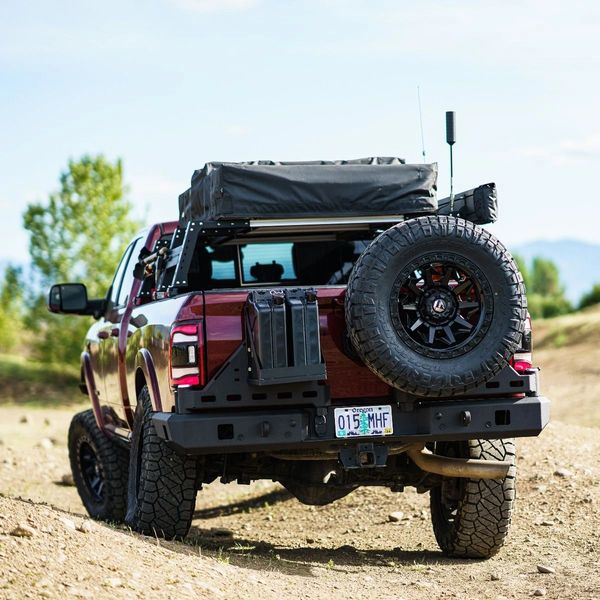

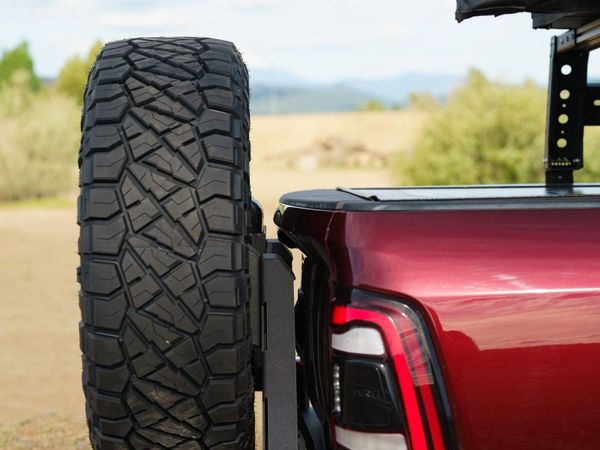

    Spare tire mount included (up to 40" tire)

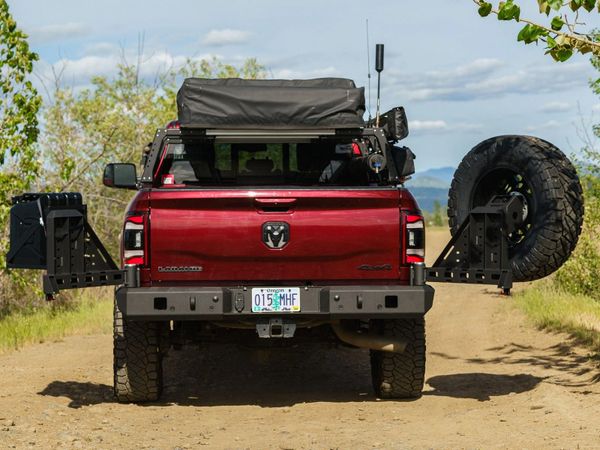

    Dual swing outs W/ 2 position locking

    This is the high-clearance bed cut version, allowing extreme departure angles and bed protection

    Dual swing-out bumper is a premium rear tire carrier bumper. Double latching swingout with slam bumpers allow a vibration-free swing out and an easy open/close using our push-button latch system. A secondary latch on the swing-out spindle also allows locking in 2 positions- closed and open, so you don’t need to worry about holding your swing outs open while lowering your tailgate. Universal ½” Slots on both swing outs allow you to mount up to a 40” Spare tire/wheel, and all your favorite accessories. One spare tire mount is included with the purchase of the bumper.

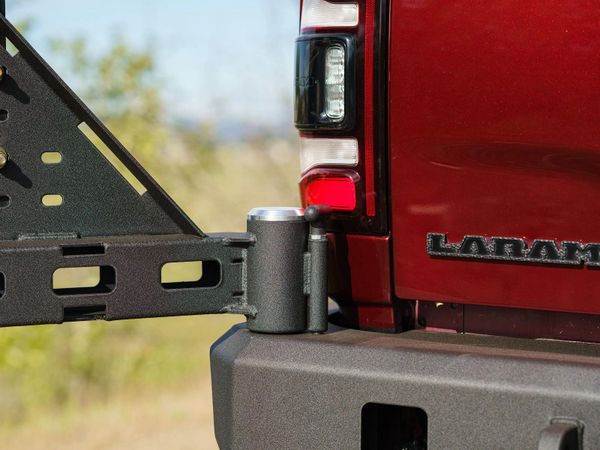

    This dual swing-out tire carrier is manufactured with top-of-the-line components ensuring our product will last a lifetime of adventures. USA Premium rated hinge/spindles with billet aluminum caps, rubber bump stops ensuring a slam style close with no vibration, push-button cam style release latches, ½” Pin secondary close and open stop, Includes spare tire mount with studs.

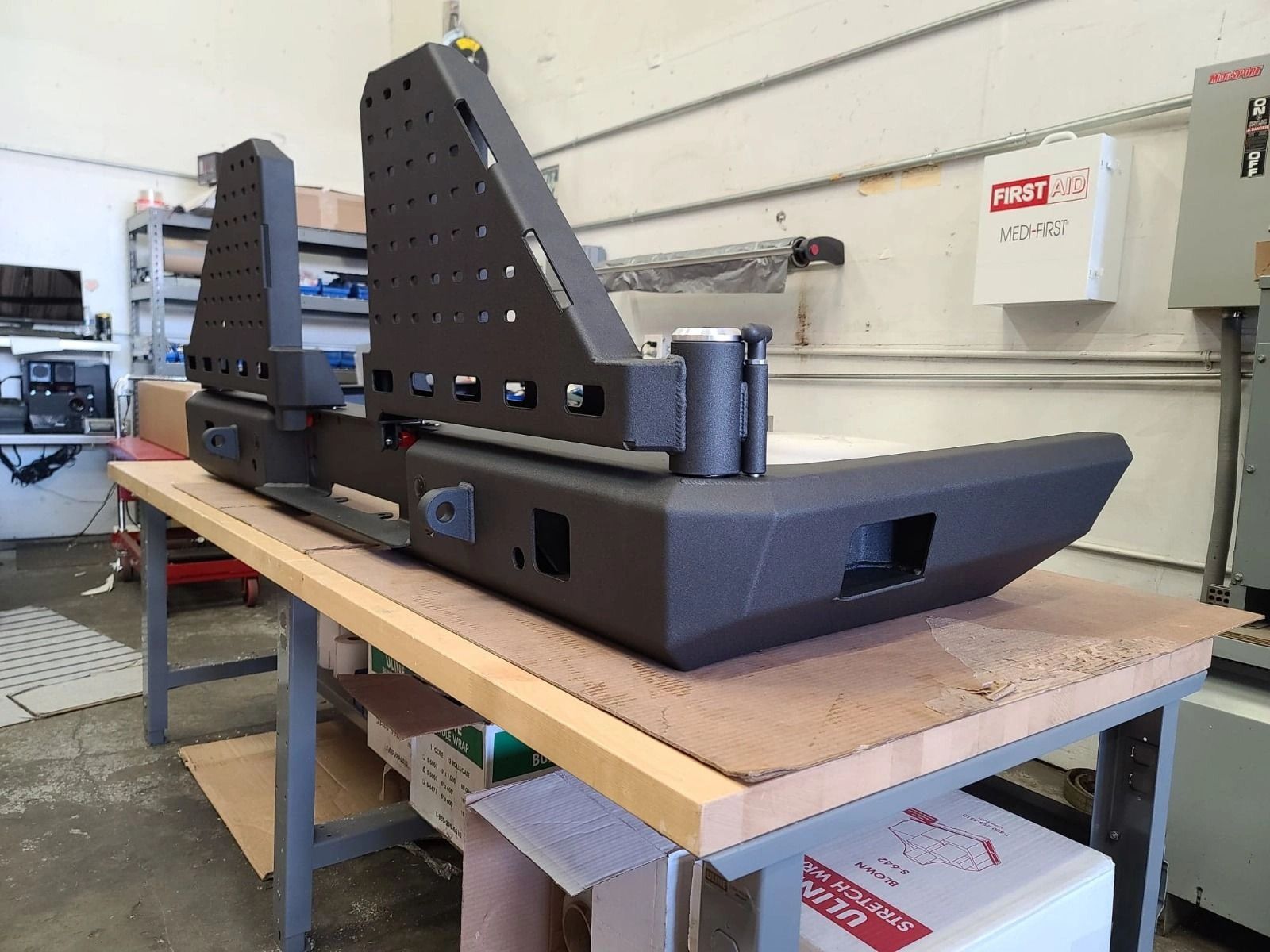

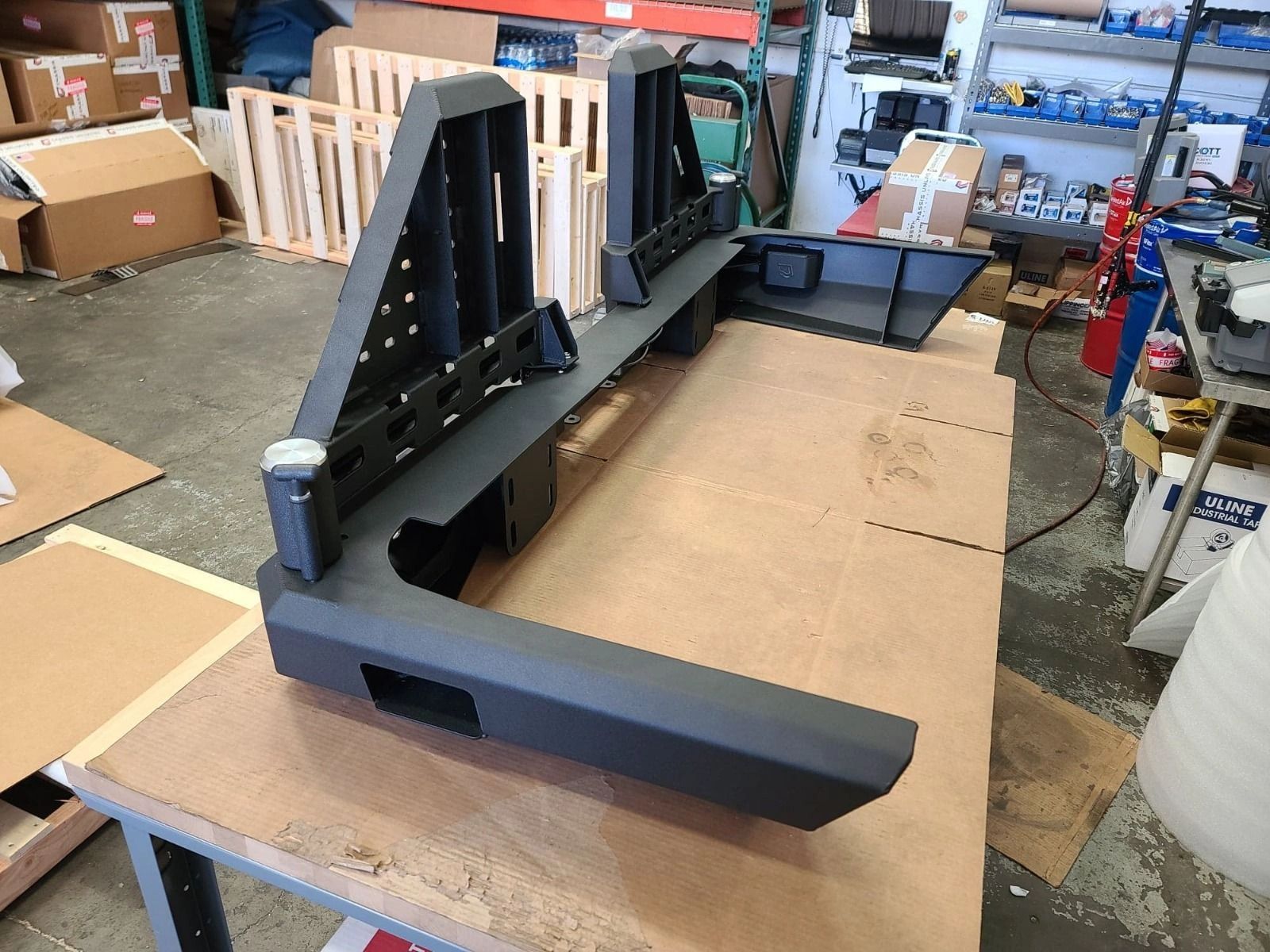

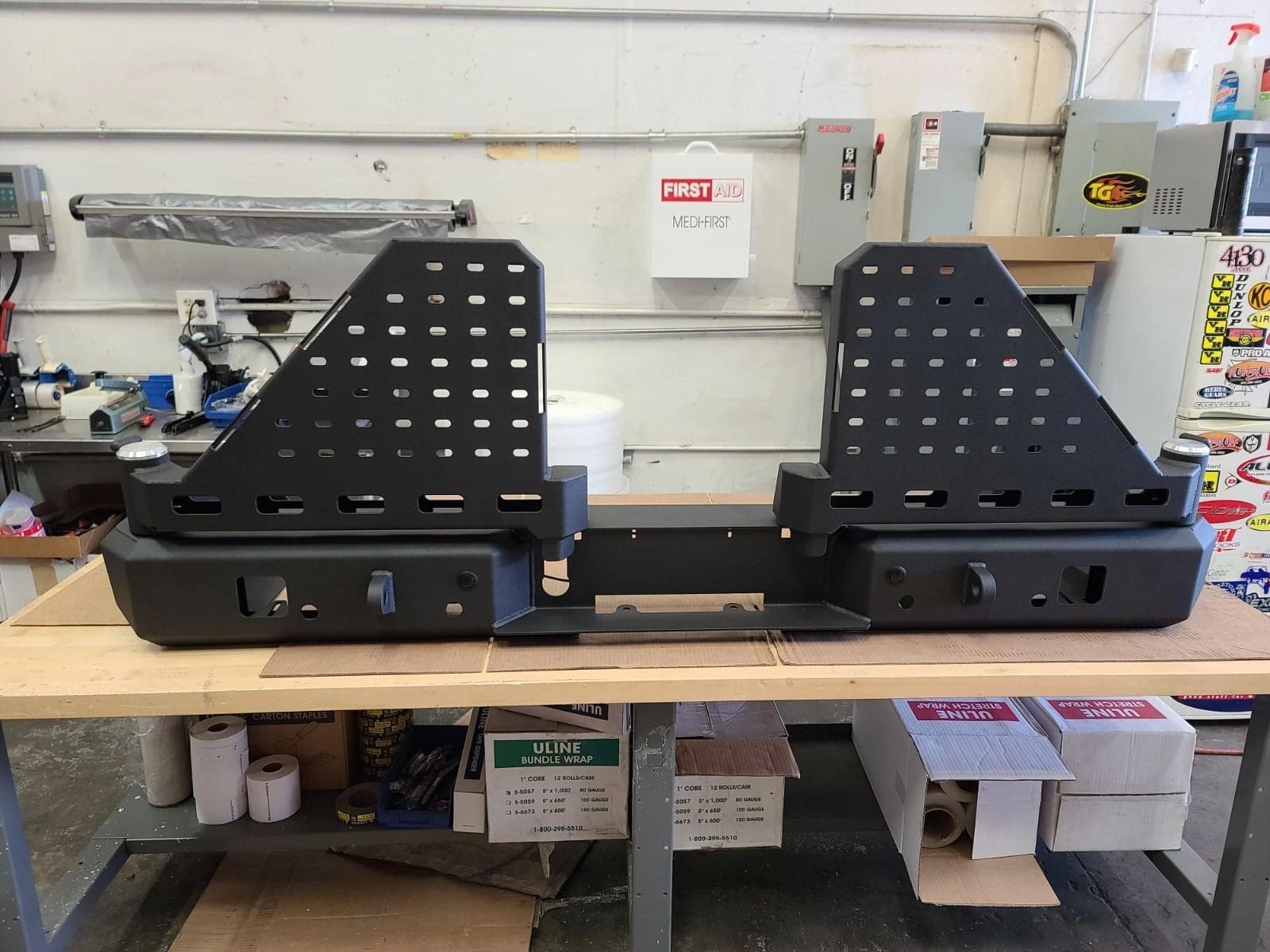

    This Dual swing-out bumper brings an entire new style to the bumper market and offers an industry-first low-profile fitment with aggressive styling. The Octane series rear bumper is designed as a one-piece bumper, and ships as one unit ready to bolt to your vehicle. The rear bumpers also feature corner steps as well as a built-in center step for ease of access.

    Most installations are completed in a few hours or less with basic hand tools; the bumper directly bolts onto your vehicle. Remove your factory bumper/mounts, and our product directly bolts onto your vehicle’s factory bumper mounting locations.

    Bumper can be run with or without your factory RAM tow hitch.



    Included Features:

    • Factory Parking sensors work excellent with our bumpers, if your stock bumper has parking sensors, please select the parking sensor bumper drop-down option.
    • Bolt-on spare tire mount for 8X6.5 (8X165.1) bolt pattern, up to 40” wheel/tire
    • Dual swing outs W/ 2 position locking
    • Push-button cam latch release system
    • Manufactured from 3/16” USA Steel
    • Includes LED License Plate Lights
    • Recessed rear-facing mounts for 3” LED Cube lights as back up lights (2)

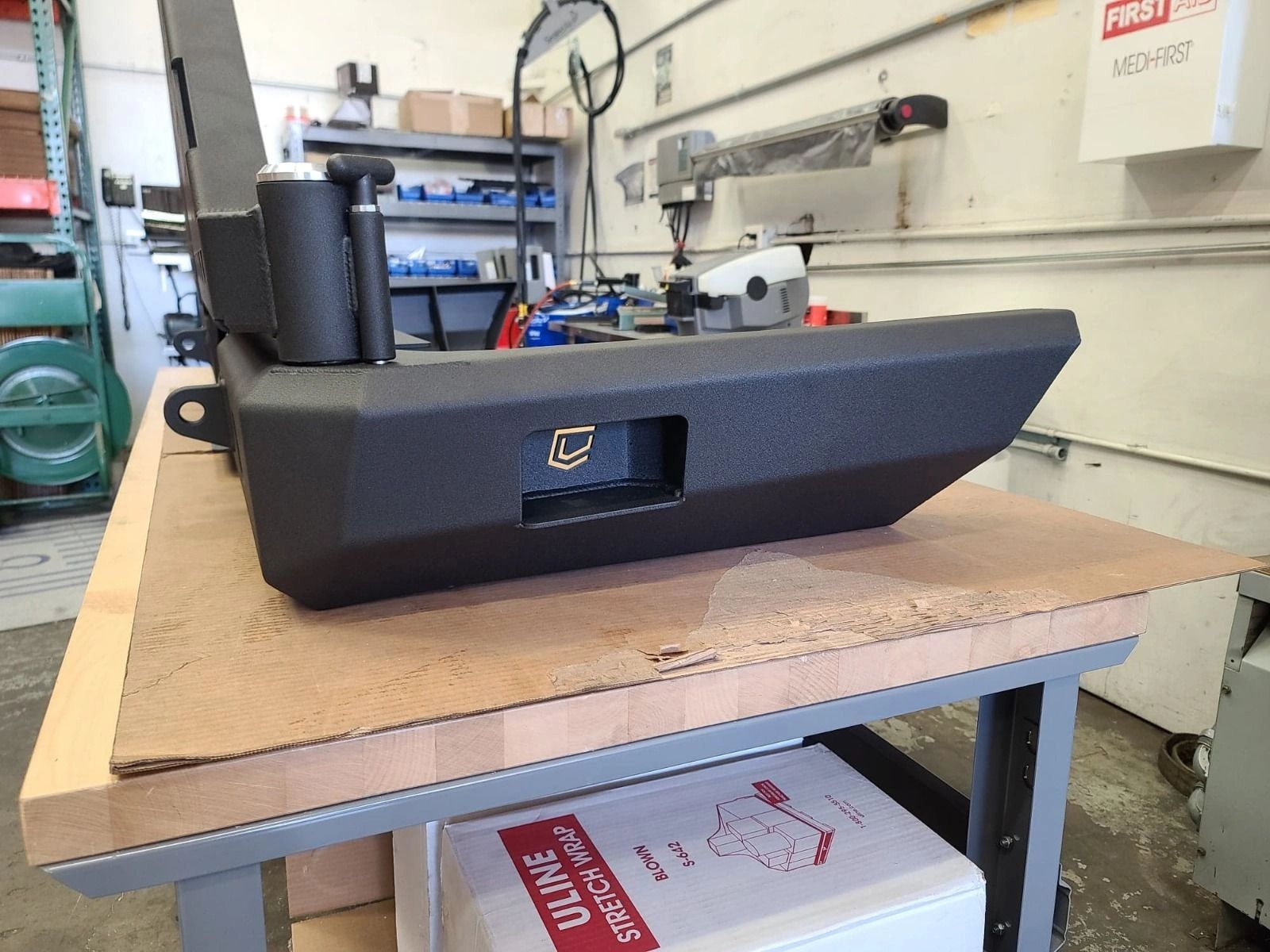

    • Each side of the bumper has integrated corner steps
    • Includes heavy-duty CNC Machined 1” Thick recovery points with a 1” Bore
    • Designed & Manufactured in AMERICA

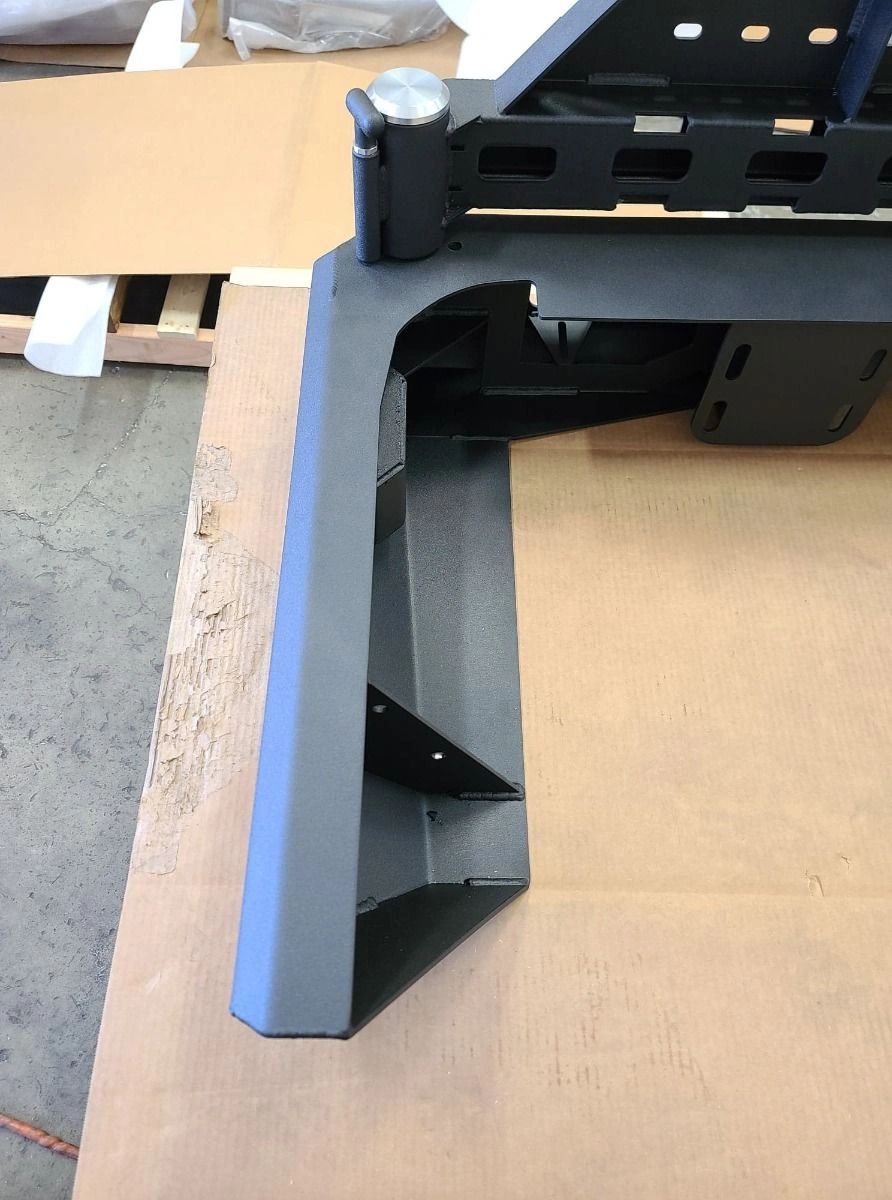

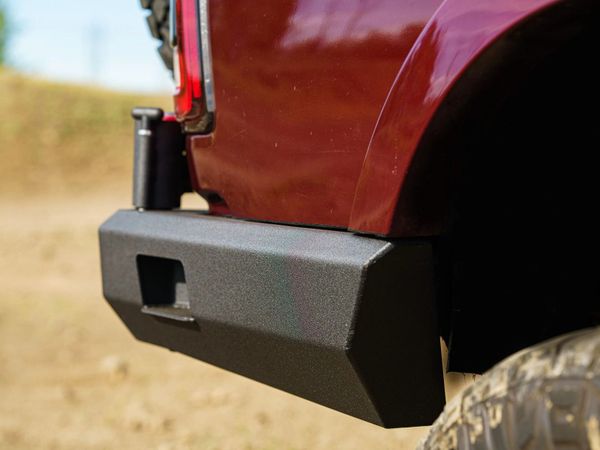

    • High Clearance bed cut version extends the bumper all the way up to the wheel well opening and includes a support arm that ties the truck's frame to the front section of the bumper supporting the weight of the vehicle- allowing you to slide over obstacles without pushing the bumper out of alignment. Requires cutting the bottom section of the factory truck bed to allow fitment of the bumper
    • Other than the cutting of your bed, the installation is amazingly simple. Most installations are completed in a few hours or less with basic hand tools; the bumpers directly bolt onto your vehicle. Remove your factory bumper/mounts, and our product directly bolts onto your vehicle’s factory bumper mounting locations.

      This bumper can be run with or without your factory RAM tow hitch.
    • Powder Coat, Bumper Ships Standard with 3-Stage Texture Black Powder Coat.  Bare Steel Available for Customer to Arrange Their Own Paint or Coating Color.  Select in options
    • LED LIGHT OPTIONS AVAILABLE SEPARATELY,  GAS CAN MOUNTS, SPARE TIRE, AND OTHER ACCESSORIES SOLD SEPARATELY

    • THIS PRODUCT REQUIRES FREIGHT SHIPMENT, AFTER PURCHASE YOU WILL BE CONTACTED TO CHECK FOR FREIGHT DELIVERY AND TERMINAL PICKUP OPTIONS.






    Below, Some Standard bumpers:







    Below, Also available for 2019-2020 RAM 1500



    FRONTS ALSO AVAILABLE




     ABOVE, Also Available, Our Full Coverage Rear Bumper, 'select' for more details

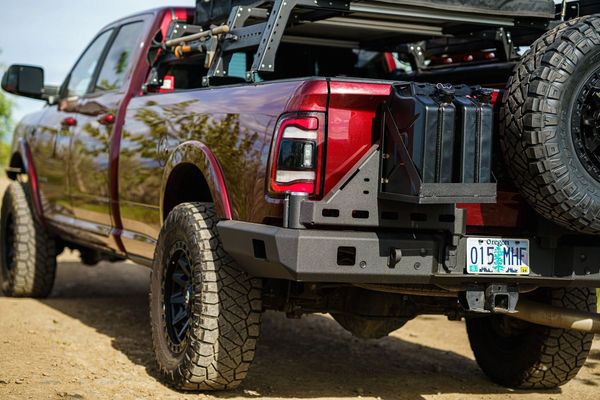

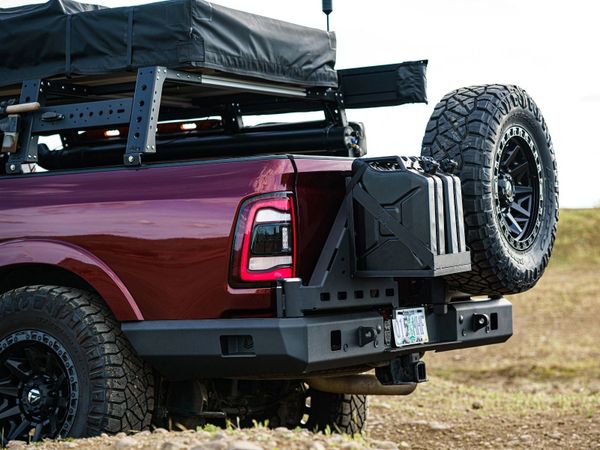

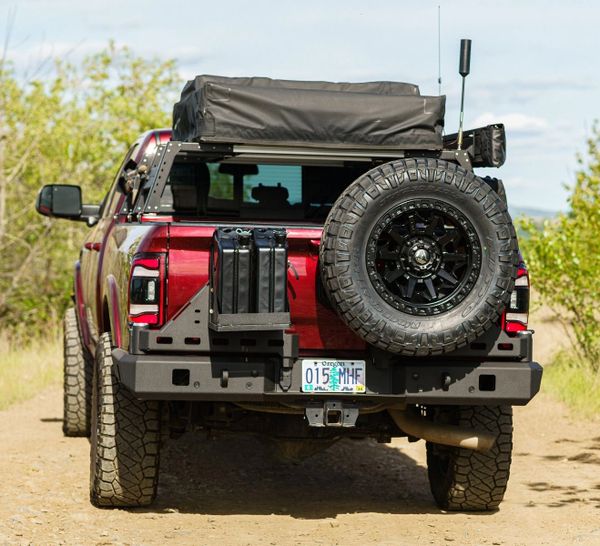

    BELOW, MORE OF THE HIGH CLEARANCE VERSION

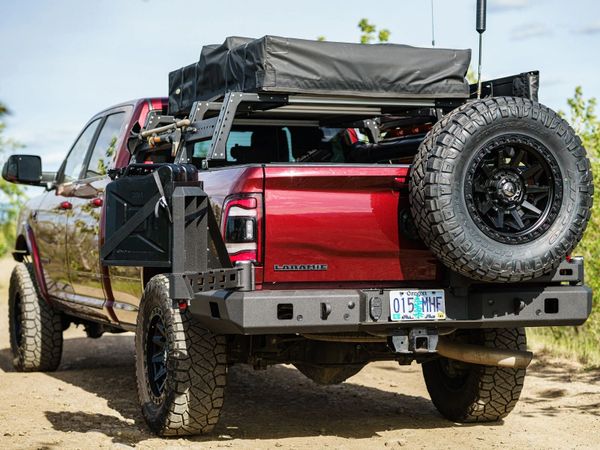

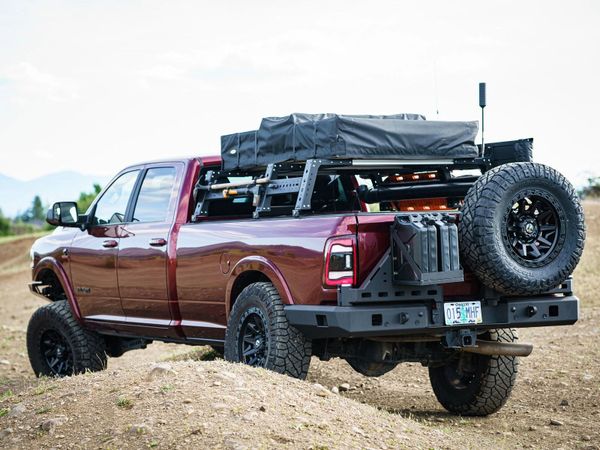

    EXCELLENT DEPARTURE ANGLE WITH HEAVY DUTY ARMOR
